Pure360 SMS

Pure360 logo

Apteco integrates with Pure360 SMS so that campaigns can send communications out as text messages via PeopleStage.

Prerequisites

  • PeopleStage diagram configured

Setup

To configure a new PeopleStage channel:

  1. Sign in to PeopleStage with a user that has Administration access.
  2. Select File > Administration > Channel Editor.
  3. In the folder where you wish to create the new SMS channel, select the options menu.

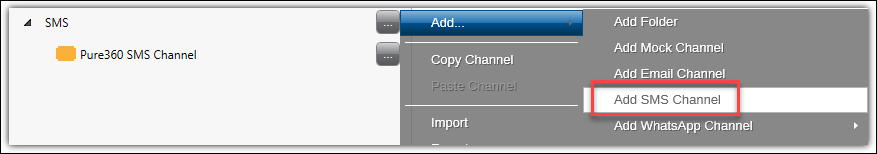

  4. Select Add… > Add SMS Channel.

    Add SMS channel

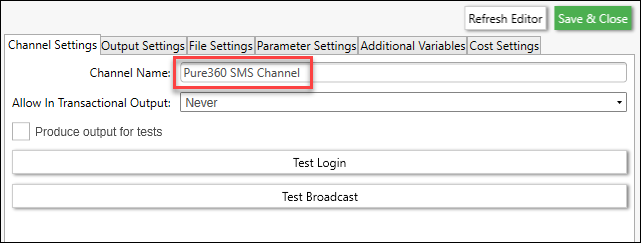

    Channel Name

    Row Item Description
    Mobile Number Variable Select the variable from the FastStats system for Mobile (this should be on the person table)
    Variable Description Override Optional. Use this if the variable's name differs from Mobile
    Reply Email Address Contact Email Address for replies
    Reply Mobile Number Contact Mobile for replies
    Response File Key Type Recommended as Communication Key
    Message Content Type Broadcaster Template
    Row Item Description
    Message Delay Setting (in minutes) prevents Pure360 trying to send before the list is ready. Default is 5 minutes
    Admin From Email The email address used to send administrative emails
    Encoding Encoding of the input file. By default, the encoding stays as-is. Possible values: ASCII, BigEndianUnicode, UTF32, UTF7, UTF8, Unicode, Default
    Intelligent Timed Sending Whether to enable intelligent timed sending. Default is false
    List Language Code The language code to use when creating new lists on Pure360. Default is en_GB.ISO8859-15
    Max Api Retries Maximum retries on API calls. Default is 5
    Maximum Deliveries Per Hour Limit delivery speed to a maximum of n deliveries per hour (minimum 1000). Default is unlimited
    Secure Setting to true will force the connection to Pure360 to become secure. Default is false
    Use Dated List Setting to true adds a date and time stamp at the end of the list name. Default is false

  5. Add any required Additional Variables.

    Additional Variables

    Note

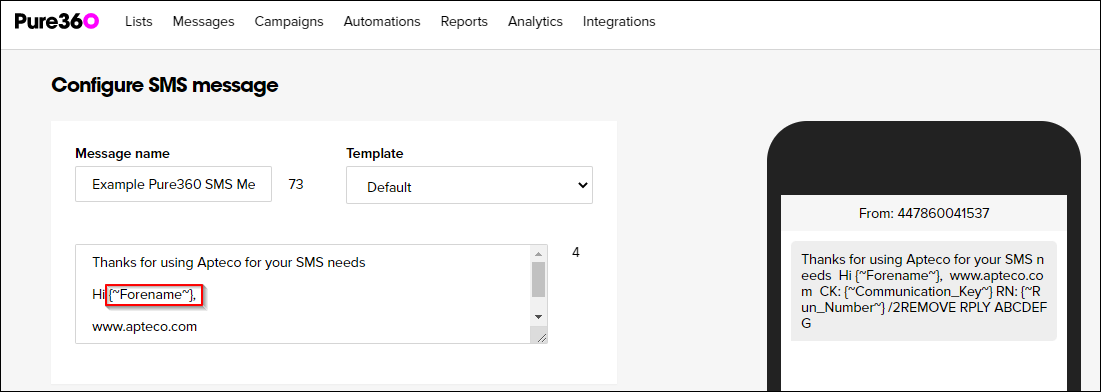

    Make sure the Variable Description matches what the Pure360 SMS template expects.

    Variable Description

SMS campaigns in PeopleStage

Note

Pure360 expects the mobile number format as: 447855512345

  1. After creating the channel, refresh the PeopleStage Library.
  2. Create a Person Level Campaign, with an Audience, Message (Content and Delivery).

  3. Drag the new Pure360 SMS channel into the Delivery step.

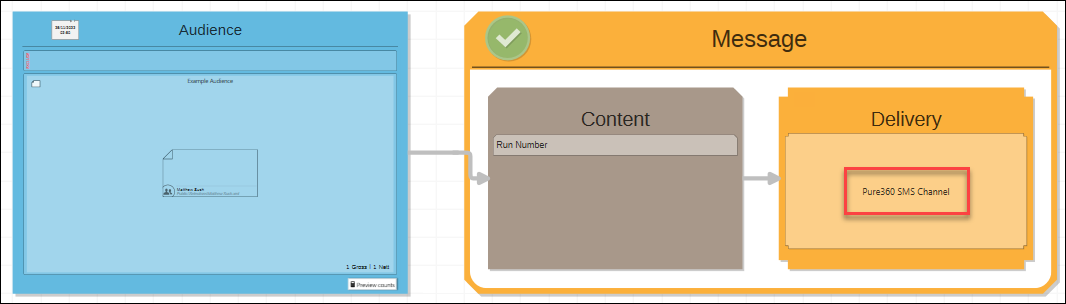

    Delivery Step

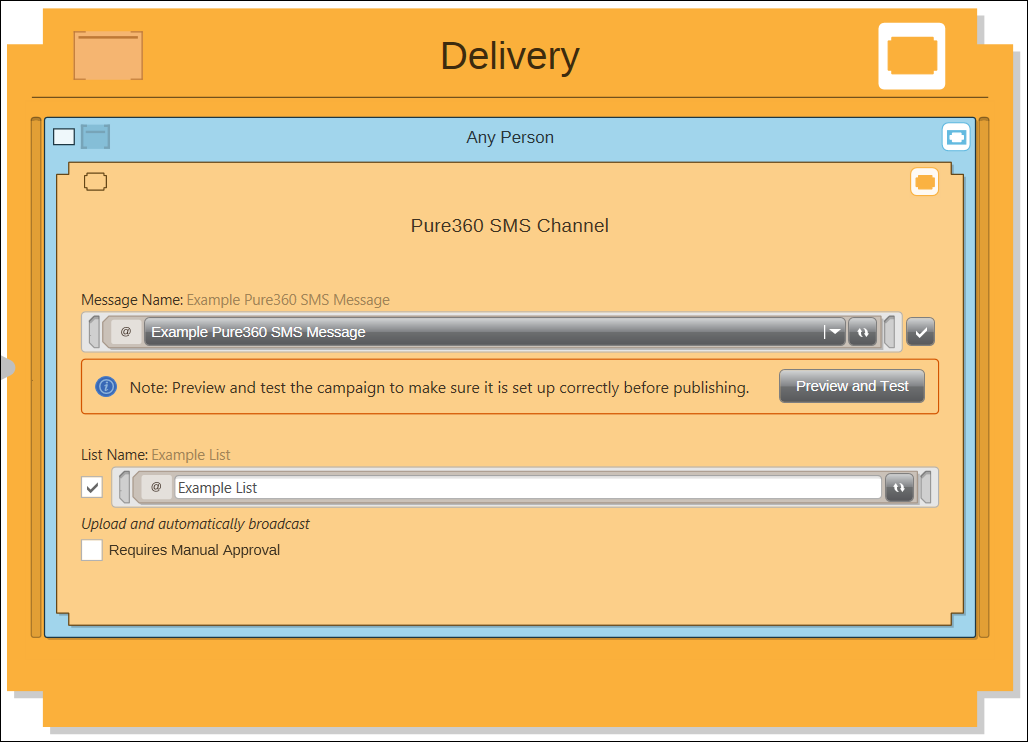

  4. In the Delivery > Message Name, select the SMS Message template.

    Message Name

  5. Schedule the campaign to run.

    Schedule the Campaign to run
