Orbit installation

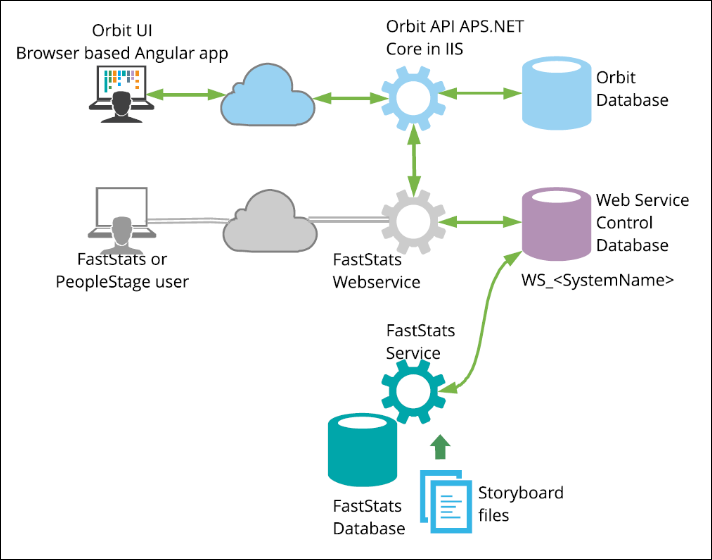

Orbit system architecture diagram

Introduction

FastStats Orbit is a JavaScript web application that deploys from a web server and runs in modern browsers. You can use Orbit on a variety of devices. It runs in a Browser User Interface (BUI) and communicates with FastStats via the Orbit API.

The Orbit API and Orbit Updater service

The Orbit API is a RESTful web service that connects the Orbit application to FastStats.

The FastStats Orbit Updater service is a Windows service that obtains the Orbit web application and Orbit API from Apteco's update server.

Before you begin

Warning

Installing Orbit requires access to staff with experience installing Apteco products and administering IIS, SQL, and Windows Server. If you aren't sure you have access to appropriate skills, please contact your partner.

This guide details the steps required to add FastStats Orbit to an existing FastStats Enterprise system, adding the following to your web server:

  1. Orbit web application: see Configuring the Orbit web application
  2. Orbit API: see Orbit API Configurator

Note

Apteco only guarantees compatibility with the previous four FastStats system releases and no releases before Q2 2017. You need Q2 2020 to use the Pareto feature and Q1 2021 to use the Resolve Table feature.

Security information

Securing user sessions

You should install Orbit on a web server that supports HTTPS.

The authentication process sends passwords in plain text through the communication channel between the Orbit UI (client) and Orbit API (web server). Using HTTPS encrypts all communications.

Security considerations of the Orbit Updater process

The Orbit Updater service downloads packages (NuGet packages) from the Orbit Update Server (usually https://orbit.apteco.com) over HTTPS. The update server exists in Apteco's perimeter network, and Apteco encrypts the packages in transit.

A certificate issued by DigiCert secures the server, ensuring that:

  • HTTPS encrypts all communications
  • The packages are secure in transit
  • The configured update server is valid and isn't a malicious site purporting to be the configured update server

Apteco manages the orbit.apteco.com server within its perimeter network and protects it with a current firewall and an active threat detection subscription.

Apteco has only recently introduced support for signing NuGet packages, so Orbit doesn't yet support it. Apteco plans to introduce support for signed NuGet packages in a future release of the Orbit Updater.

The Orbit Updater runs packaged SQL scripts to apply any necessary changes. These scripts ship with a .sig (signature) file containing a SHA512 signed hash of the SQL script. The Orbit Updater only applies these scripts if:

  • The .sig file is present
  • The .sig file matches the contents of the SQL script
  • The signature matches a known Apteco signature

Process overview

The installation is a five-stage process. Use the checklist to guide you through it.

  1. Prerequisites
  2. Information required
  3. Orbit installation
    • Orbit database
    • Updater service
    • Post-installation check
  4. Configuration
    • Orbit
    • IIS
    • FastStats
  5. Testing and validation

Apteco recommends completing and validating the prerequisites, and deciding and documenting the information required, before starting the installation process. In some environments, completing the prerequisites may require effort and support from multiple teams.
