Enabling Orin

Before users can use Apteco's AI tool Orin on-premises, a system administrator must complete the following installation and configuration steps:

1. Installing Chat API
2. Migrating the Orbit API configuration
3. Configuring Chat API
4. Enabling web sockets in the API
5. Repairing the Orbit UI
6. Turning on Orin

Once Orin is running, you can also add policy links to the Orin options menu.

Installing Chat API

Before you can access Orin, you must use the Orbit Updater to download the Chat API functionality.

To install the Chat API:

1. Run OrbitUpdaterConfigurator.exe as Administrator from:

   Text Only

   C:\Program Files (x86)\Apteco\FastStats Orbit Updater\


2. Select the Chat API tab.

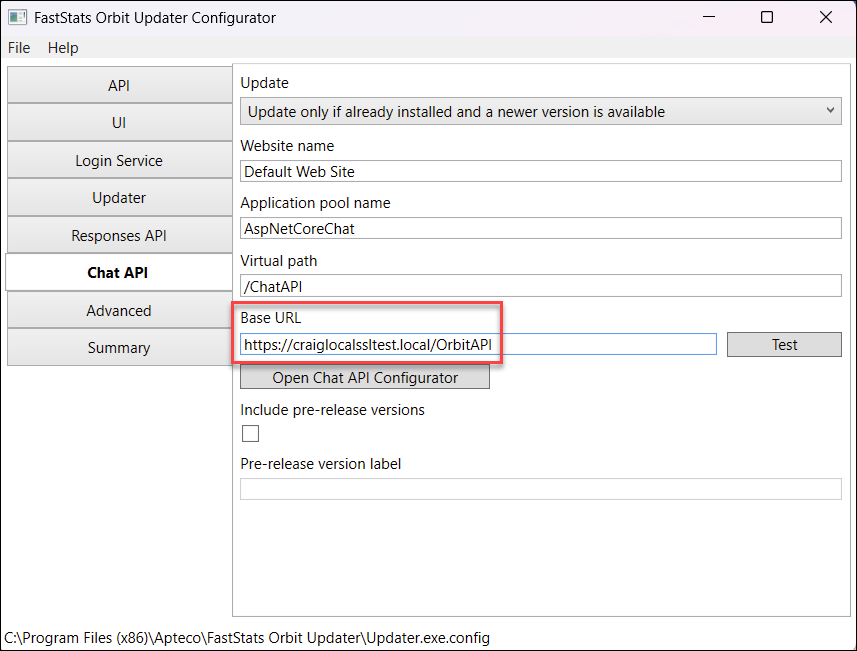

3. Copy the Base URL from the API tab and paste it into the Base URL field on the Chat API tab.

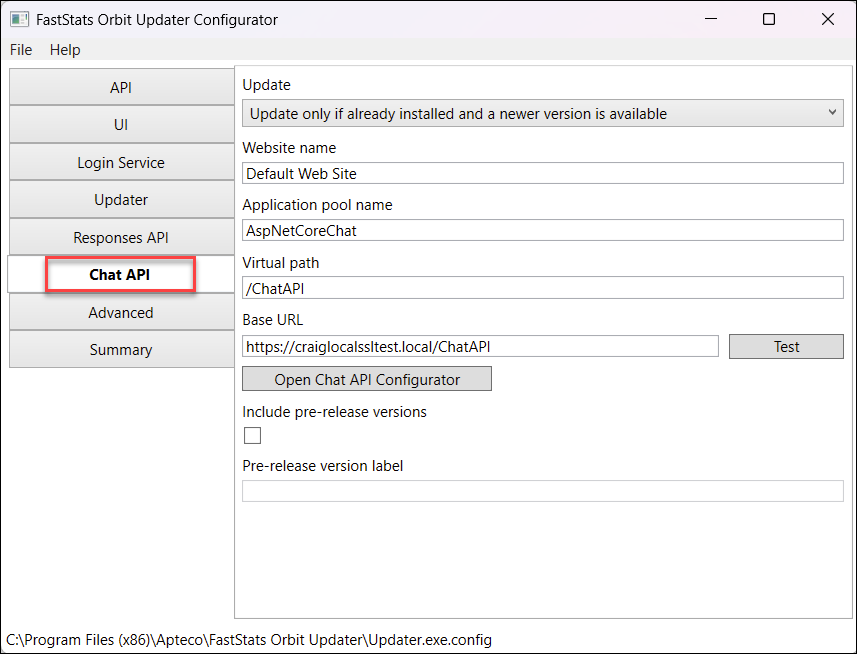

4. Change the Base URL in the Chat API tab to refer to ChatAPI instead of OrbitAPI.



   Note

   For a multi-API system, you also need to:

   • Change the virtual path to {your_system_folder}/ChatApi
   • Change the application pool name from AspNetCoreChat to AspNetCore{your_system_name}Chat (no spaces)

5. Restart the FastStats Orbit Updater service.

You can monitor the updater progress in Applications and Services Logs > FastStatsOrbitUpdaterLog in Windows Event Viewer.

Migrating the Orbit API configuration

Before you begin

You need:

• Access to your FastStats configuration database
• A connection string for a user with table creation rights (only if the OrbitConfigurations table doesn't exist)

Migrate the configuration

To migrate your Orbit API configuration:

1. In the Orbit Updater, select the API tab.
2. Select Open API Configurator.
3. In the FastStats config database tab, enter your connection string in the Connection string field. Your configuration database is typically named FS_Config, but may have a different name.

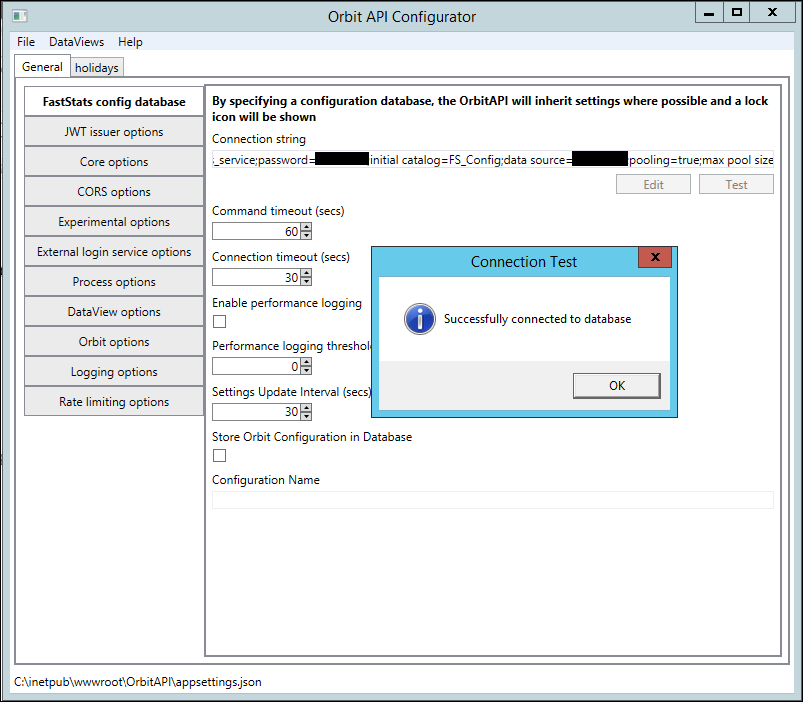

4. Select Test to verify the connection.

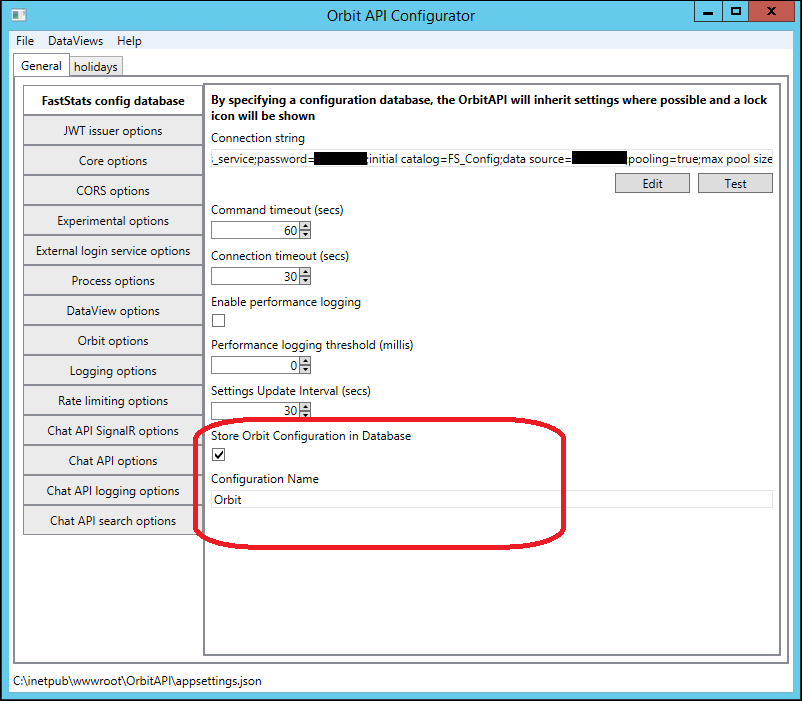

5. Select Store Orbit Configuration in Database. This enables the Configuration Name field (default value: Orbit) and displays Chat API options.



   Note

   Only change the Configuration Name value if you have multiple Orbit installations using the same configuration database.

6. Select File > Save.

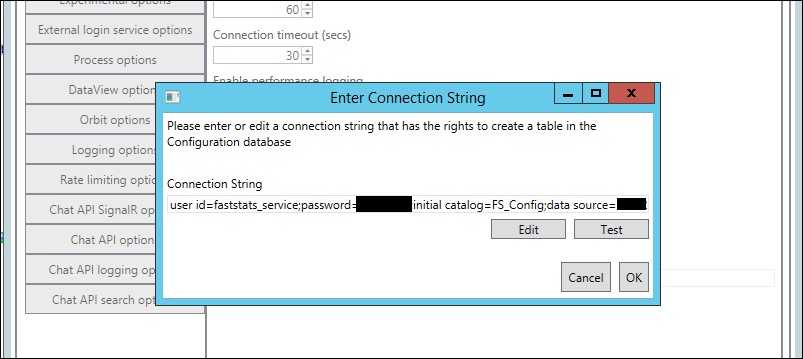

   If the OrbitConfigurations table doesn't exist, the tool attempts to create it automatically. If your user lacks the required permissions, enter a connection string for a user with table creation rights when prompted. Select Edit to modify connection string values.



7. Close the API configuration tool.

Configuring Chat API

To configure the Chat API:

1. In the Orbit Updater, select the Chat API tab.

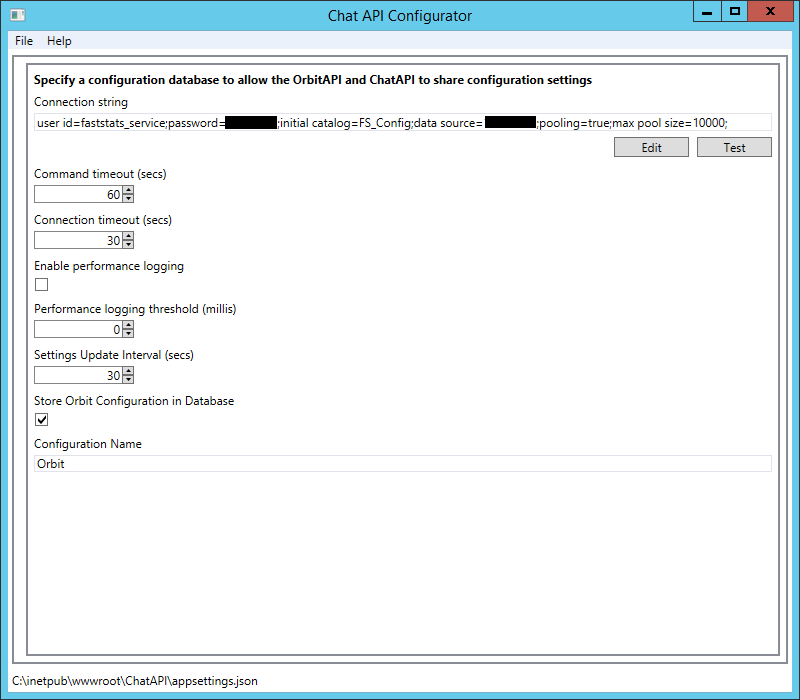

2. Select Open Chat API Configurator.
3. In the FastStats config database tab, enter the same connection string you used in the Orbit API configuration tool.
4. Select Test to verify the connection.
5. Confirm you've selected Store Orbit Configuration in Database, and that Configuration Name matches the value from the Orbit API configuration tool.
6. Select File > Save. The settings save immediately because the database is already configured.
7. Close the tool.

For future configuration changes, use the Orbit API Configuration tool unless you are moving the FastStats configuration database.

Update Chat API options

To configure the Chat API URL:

1. Open the Orbit API Configuration tool.
2. In Chat API options, verify the URL field contains the correct Orbit API URL. This is typically the same URL configured in the API tab of the Orbit Updater (for example: https://[your-server]/OrbitAPI).
3. Select File > Save.
4. Restart the Chat API process to apply the changes: in IIS Manager, stop and start the App Pool associated with the Chat API.

Enabling web sockets in the API

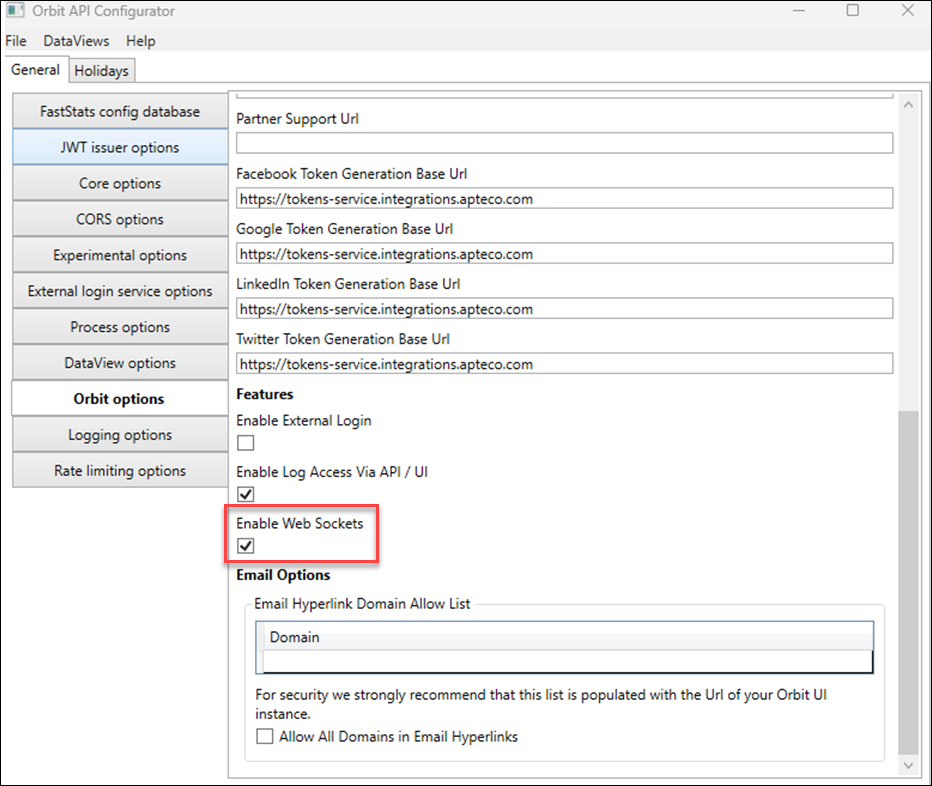

In the Orbit API Configurator, confirm you've ticked the Enable Web Sockets box under Orbit options.

If it's not ticked, tick it, then save and close the API Configurator.

Repairing the Orbit UI

You must repair the Orbit UI so that the config.json file within the assets folders has the correct chatApiURL defined.

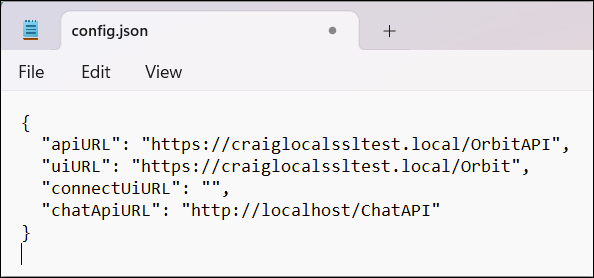

In the following example, the file at C:\inetpub\wwwroot\Orbit\en\assets\config.json is still referring to localhost:

Completing a Repair on the UI populates chatApiURL with the required value.

To repair the Orbit UI:

1. Run UpdaterConfigurator.exe from within:

   Text Only

   C:\Program Files (x86)\Apteco\FastStats Orbit Updater\

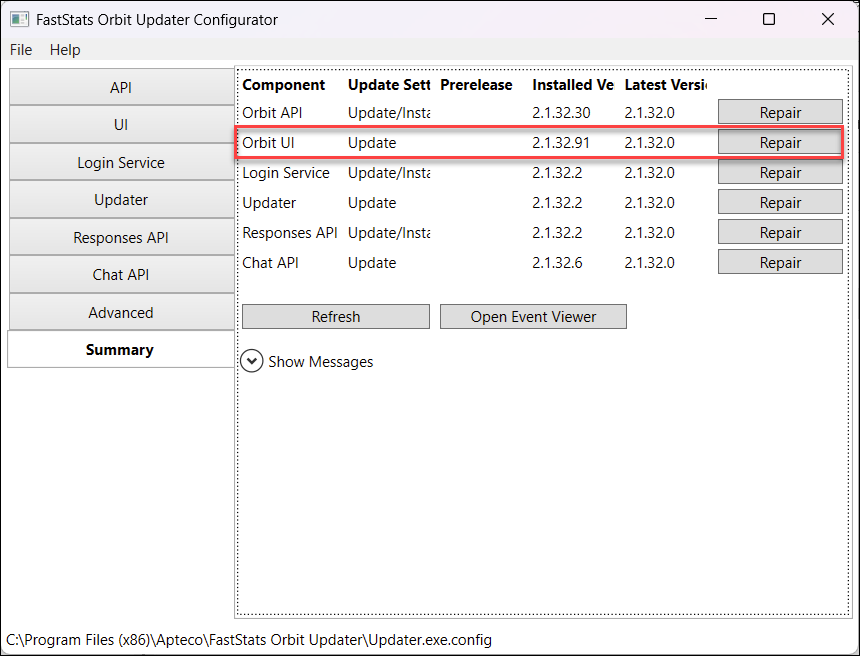

2. Select the Summary tab.

3. Select Repair next to the Orbit UI entry.

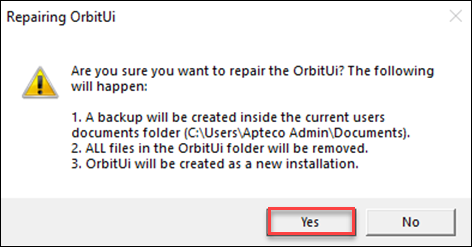

4. Select Yes when prompted.



5. The Repair button changes to Repairing...

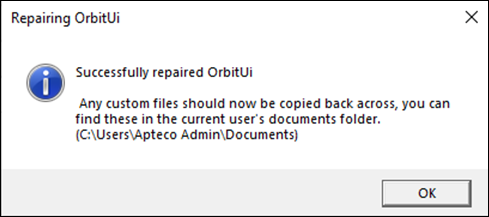

6. Select OK when the process has finished.



Turning on Orin

To make Orin available in Orbit, turn on its feature switch.

1. Log into Orbit as an Administrator.

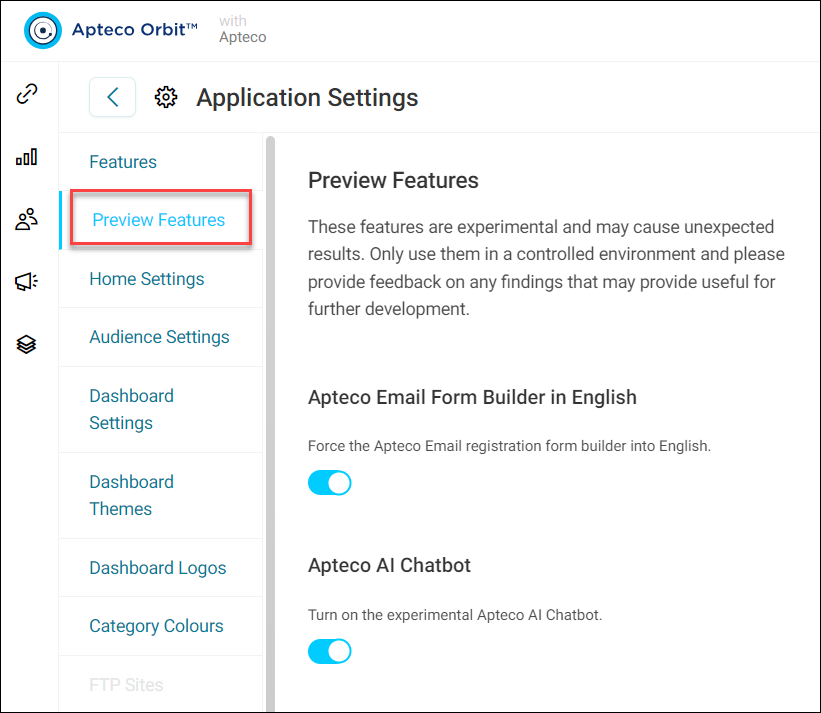

2. Select the User icon at the top right of your screen, then select Application Settings.

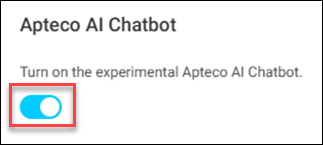

3. In Features, toggle on Orin AI Assistant.

4. Log out and log back into Orbit. Orin now appears in the bottom left-hand corner of the Orbit UI.



Adding policy links to the Orin options menu

You can add links, such as your organisation's AI use policy, to the Orin options menu: the three dots next to the minimise button at the top right of the Orin panel. Each link opens in a new tab. This step is optional. If you don't add any links, the menu shows only New Chat, Chat History, and Help.

To add policy links:

1. In the Orbit Updater, select the API tab, then select Open API Configurator. For more about the configurator, see Orbit API Configurator.
2. Select Orbit options.

3. Under Orin Policy Links, enter a Label and a Url for each link, one link per row.



   Note

   The configurator only keeps what you type in a box once you move to another box. Select another box before you save.

4. Select File > Save.

5. Restart the Orbit API to apply the change.

Your links appear below a divider in the Orin options menu, after New Chat, Chat History, and Help.
