Setting up single sign-on with Okta

This article takes an administrator through the process of setting up Single Sign-On (SSO) with Okta. It uses Security Assertion Markup Language (SAML) for authentication.

Create an app in Okta¶

Log in to your Okta Admin portal (e.g. aptecotest.okta.com).
Switch to the Applications tab.
Select Add Application.
Select Create New App.

App setup¶

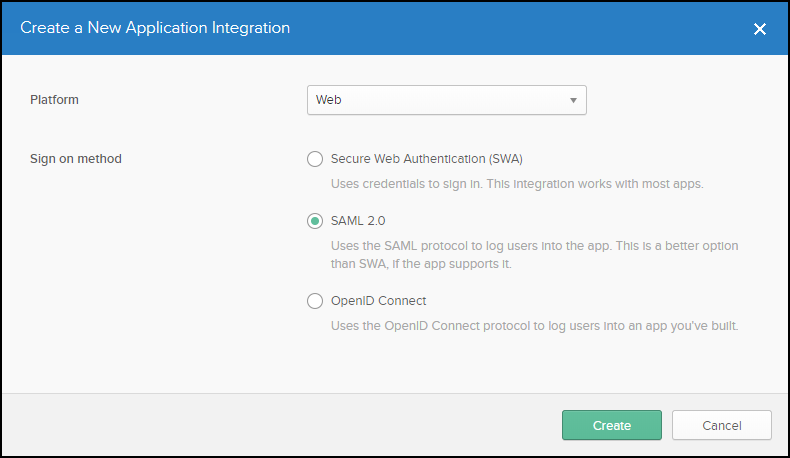

For Platform, choose Web. For Sign on method, choose SAML 2.0. Select Create.

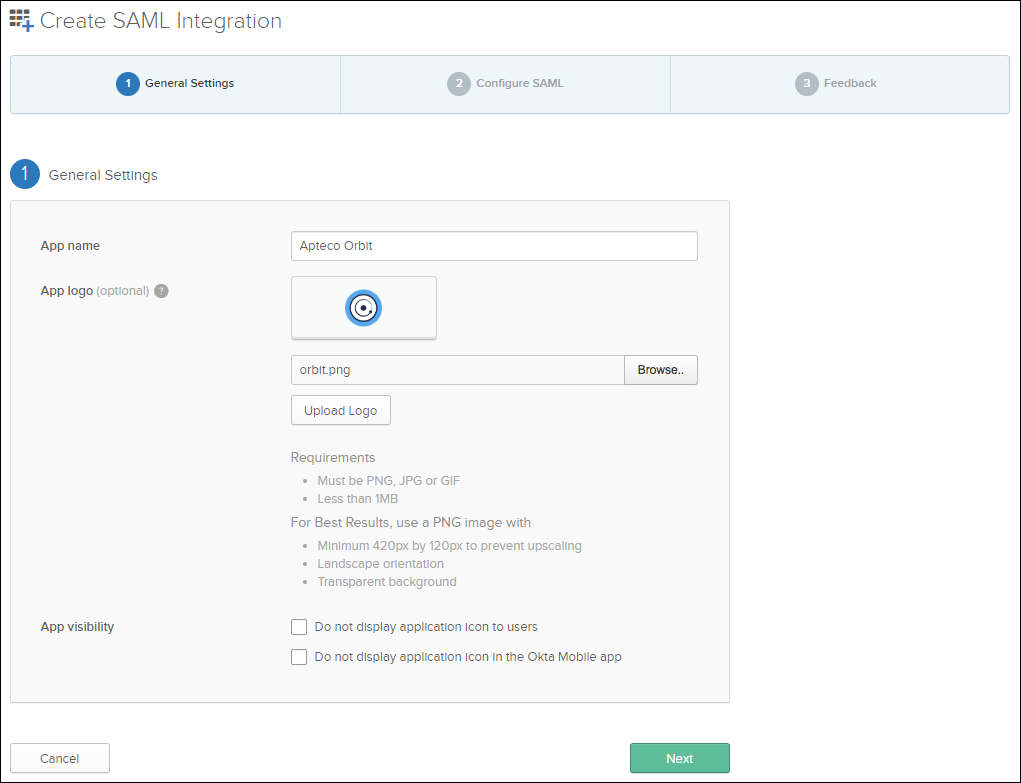

Choose an App name, optional App logo, and set App visibility options, then select Next.

Configure the following fields:

Field	Value
Single sign on URL	`https://[your-server]/OrbitAPI/ExternalLogin/AssertionConsumerService`
Audience URI (SP Entity ID)	`https://AptecoLoginAPI/`
Default RelayState	`https://[your-server]/Orbit/external-login`
Name ID format	`Unspecified` (default, unless the application requires a specific format)
Application username	Determines the default value for the SAML assertion's subject statement
Update application username on	`Create and update`

Note

external-login is case-sensitive and won't work if entered in any other case.

Select Next.

Certificates¶

Make a note of the Identity Provider Single Sign-On URL and Identity Provider Issuer.
Select View Setup Instructions to open a new tab showing the URLs and x.509 certificate.
Select Download Certificate and save as Okta.cert in the Certificates folder on your web server:
Text Only
```
C:\Program Files (x86)\Apteco\OrbitLoginService\Certificates\Okta.cert
```

See Orbit login service to install and configure the Login Service first.

Edit the Orbit Login Service configuration file with the following JSON, substituting your actual values:

JSON

{
  "Serilog": {
    "MinimumLevel": {
      "Default": "Debug",
      "Override": {
        "Microsoft": "Warning",
        "System": "Warning",
        "ComponentSpace.Saml2": "Warning"
      }
    },
    "WriteTo": [
      { "Name": "Trace" },
      {
        "Name": "RollingFile",
        "Args": { "pathFormat": "C:\\temp\\Orbit\\Logs\\OrbitLogin-{Date}.txt" }
      }
    ],
    "Enrich": ["FromLogContext", "WithMachineName", "WithThreadId"]
  },
  "Kestrel": {
    "Endpoints": {
      "Http": { "Url": "http://localhost:5005" }
    }
  },
  "AllowedHosts": "*",
  "SAML": {
    "$schema": "https://www.componentspace.com/schemas/saml-config-schema-v1.0.json",
    "Configurations": [
      {
        "LocalServiceProviderConfiguration": {
          "Name": "https://AptecoLoginApi/",
          "Description": "Apteco Orbit Login API",
          "AssertionConsumerServiceUrl": "https://example.com/OrbitAPI/ExternalLogin/AssertionConsumerService",
          "LocalCertificates": [
            { "FileName": "certificates/sp.pfx", "Password": "password" }
          ]
        },
        "PartnerIdentityProviderConfigurations": [
          {
            "Name": "http://www.okta.com/exkjee2b8slkcYPAk5d5",
            "Description": "Okta",
            "SignAuthnRequest": true,
            "SingleSignOnServiceUrl": "https://dev-8040522.okta.com/app/aptecodev8040522_aptecoorbit_2/exkjee2b8slkcYPAk5d5/sso/saml",
            "PartnerCertificates": [
              { "FileName": "certificates/okta.cert" }
            ]
          }
        ]
      }
    ]
  },
  "PartnerName": "http://www.okta.com/exkjee2b8slkcYPAk5d5",
  "JWT": {
    "Key": "VerySecretAptecoJWTKey",
    "Issuer": "https://AptecoLoginApi/"
  },
  "AllowedReturnUrlOrigins": "https://example.com/"
}

You must provide values in three sections:

Within localserviceproviderconfiguration:

AssertionConsumerServiceUrl: same value set during SAML configuration (e.g. https://[your-server]/OrbitAPI/ExternalLogin/AssertionConsumerService)

Within partneridentityproviderconfigurations:

Field	Value
`Name`	The Identity Provider Issuer URL
`Description`	`Okta`
`SingleSignOnServiceUrl`	The Identity Provider Single Sign-On URL from the SAML 2.0 configuration metadata
`PartnerCertificates.FileName`	Relative path to the Okta certificate (e.g. `certificates/okta.cert`)

At root level:

Field	Value
`PartnerName`	The Identity Provider Metadata URL
`AllowedReturnUrlOrigins`	The base address of the website hosting Orbit

Start (or restart) the Orbit Updater Service to pick up the configuration changes.

Assigning the app to users¶

Before users can access Orbit through Okta, assign the application to them.

In the Okta Admin Portal, select the Applications page.
Select Assign Users to App.

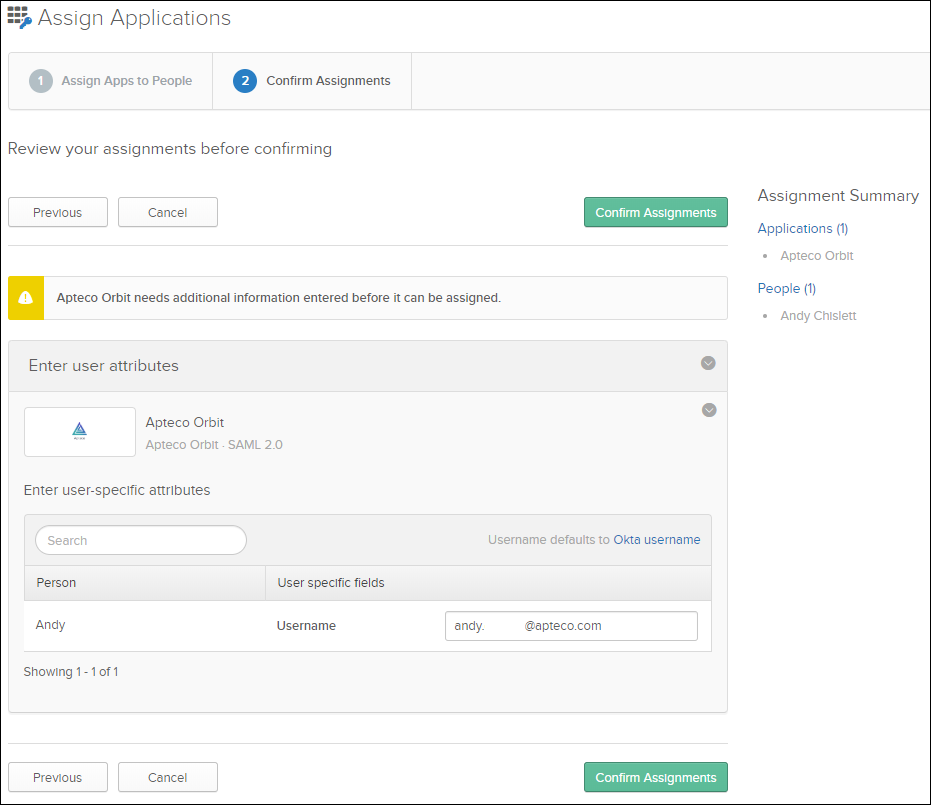

Select the correct application in the left panel and choose the users in the right panel, then select Next.
Okta defaults to passing its username to the configured application. To override this (e.g. to map an Okta identity to a FastStats username), type the value in the Username field for each user.
Select Confirm Assignments.

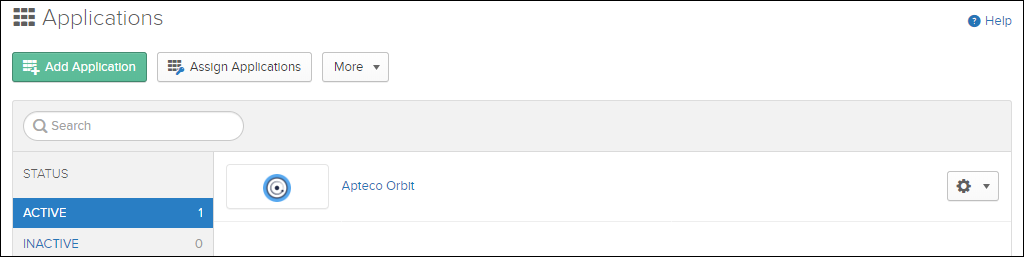

The application is now configured for use.

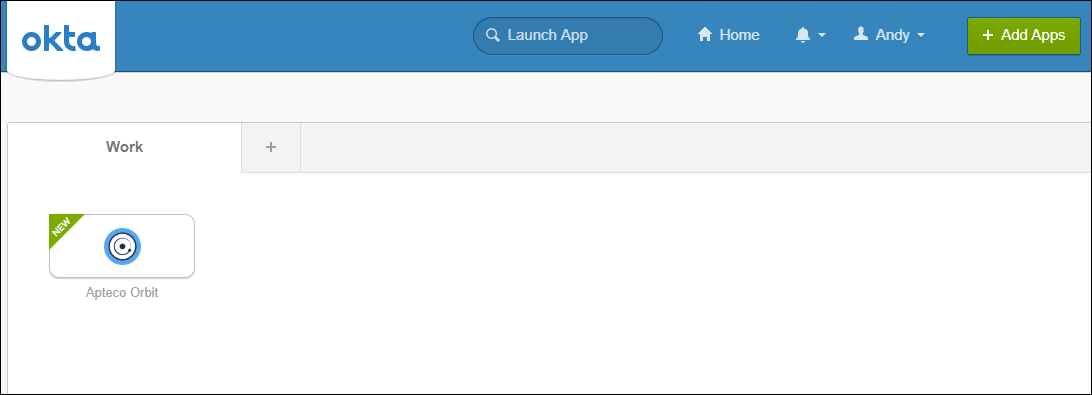

Users can now access the application from their User Home page within Okta.
